Mounting Kit for 7″/8″ Rugged Tablet – UNI – VERT. + Double Bracket 90 Mm. – Twalcom®

DESCRIPTION

“PROTECTED DESIGN by Akran Intellectual Property”

Over the past few years, we have designed, tested, and industrialized a wide range of accessories dedicated to the Rally/Raid event scene
. All accessories are directly derived from experience gained on the race fields and refined through use.

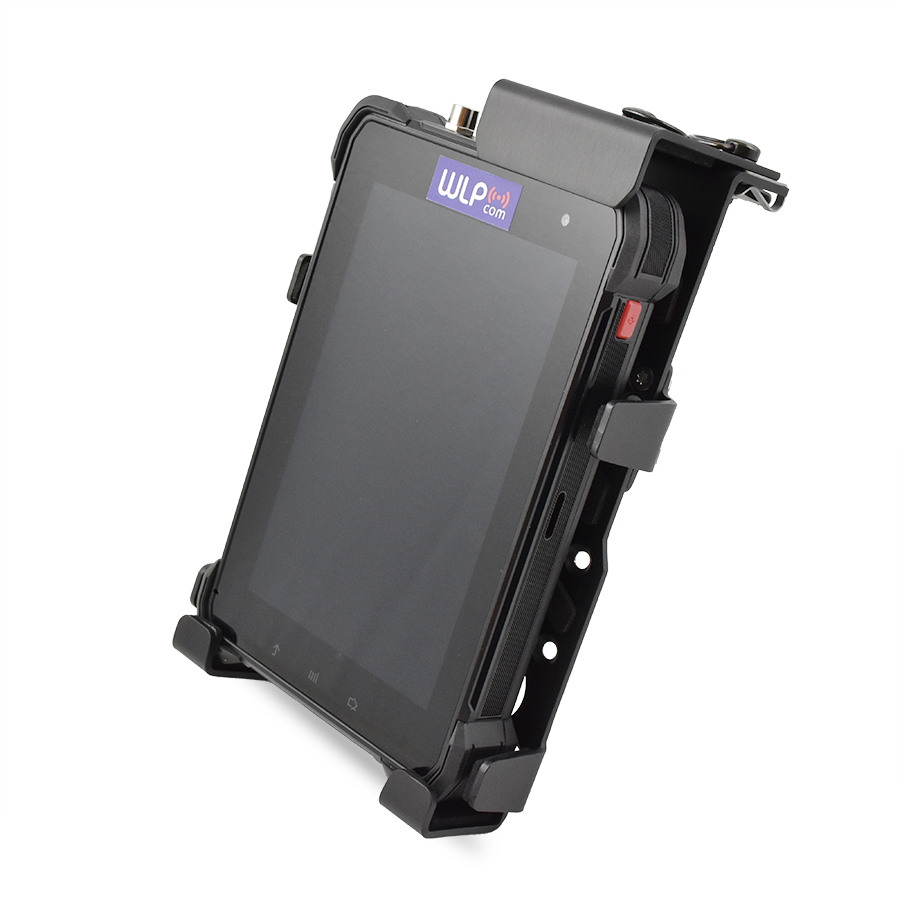

The UNI slide for Rugged Tablet 7″/8” that we designed and produced is specifically made to accommodate most
Rugged Tablets on the market. Thanks to its modular design and the set of spacers provided (which also act as anti-vibration)
, it is possible to securely and easily mount Rugged Tablets of various sizes and thicknesses (Kcosit/WLP, Soten/CARPE ITER, Samsung Active 2/3, etc.).

It is possible to position different Rugged Tablets directly on the slide, without their original bases. During the first positioning, simply

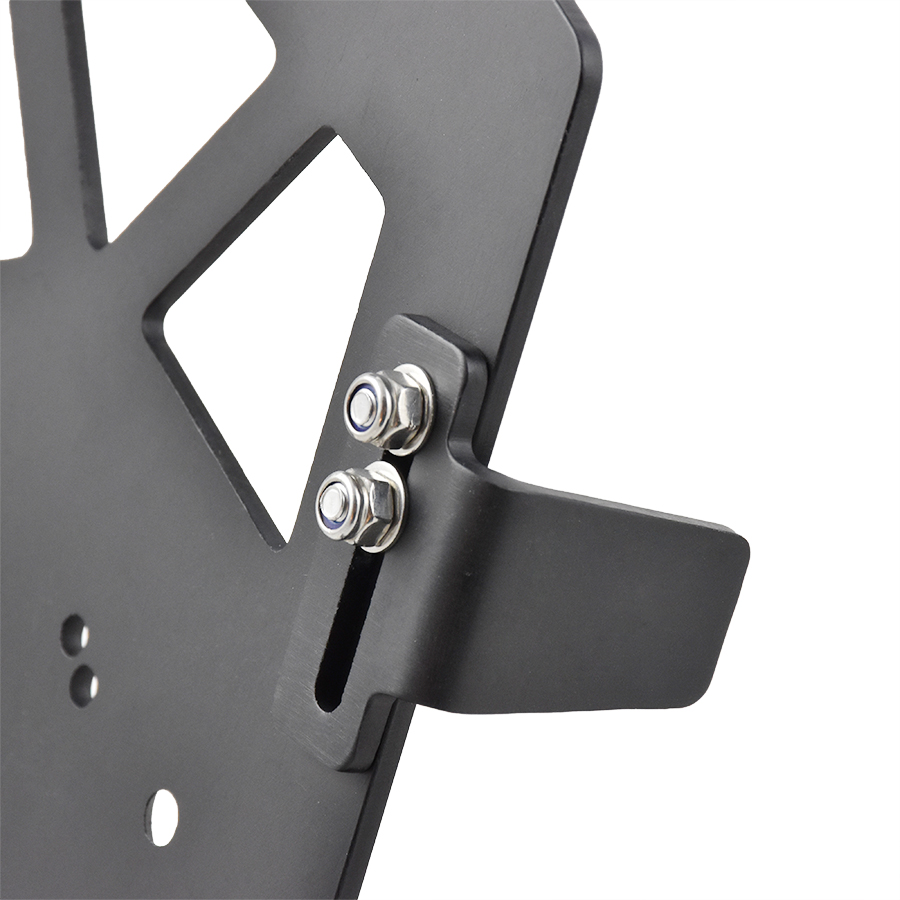

apply the anti-vibration spacers as needed, adjust the two asymmetrical side brackets so they do not interfere with various buttons or the power socket
, close the top containment with quick-release fasteners, and you’re done.

PRIORITY FOR VERTICAL SUPPORT AND MOUNTING: The slide has numerous series of mounting holes to be easily combined with mounting systems other than Twalcom®.

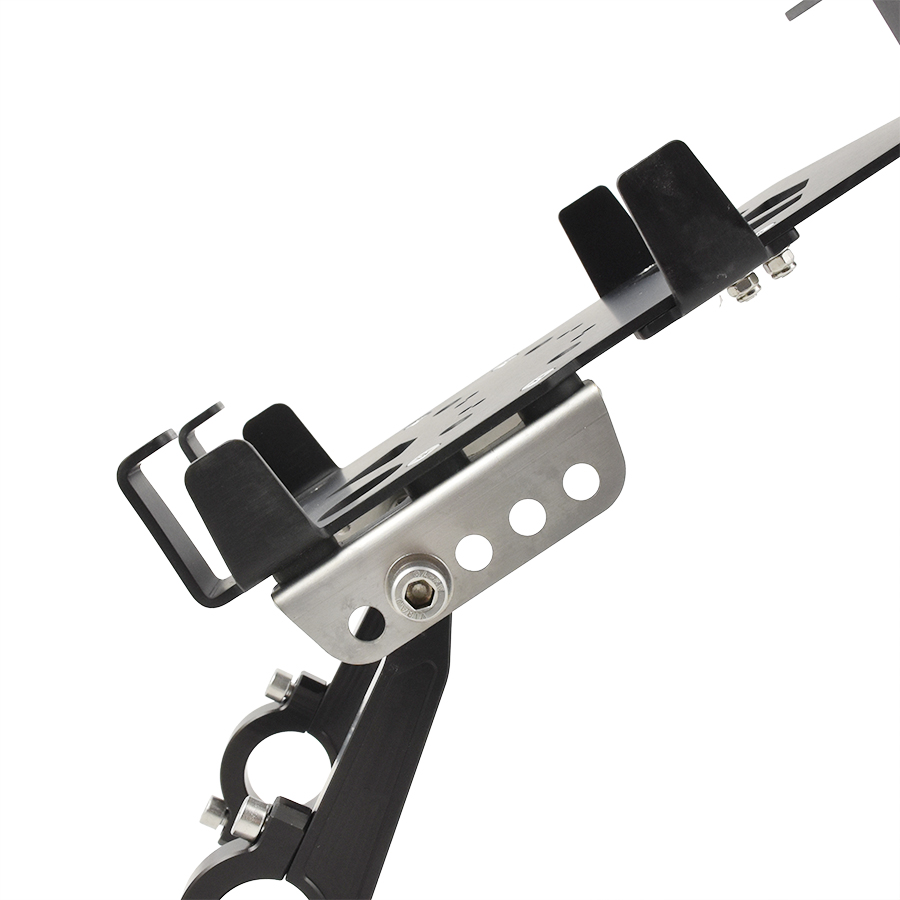

The system features double brackets that can be positioned both internally and externally to the risers, with multiple different positions
of the base. The double brackets can therefore be rotated, moved forward or backward as needed, making riding more intuitive and safer.

The multiple adjustment and rotation possibilities on two different axes, plus the additional option to adjust the height/distance by +/- 3 cm, allows you to always find the best possible adjustment for maximum visibility.

OTHER MOUNTING POSSIBILITIES: The slide also has in its central part the classic series of holes with Garmin and RAM Mount spacing. These also allow mounting with priority for vertical support, but also, if necessary, the possibility of horizontal mounting.

The entire system is specifically designed to minimize weight and optimize the best possible mounting ergonomics, making adjustment and fastening simple and very quick.

Structural Features:

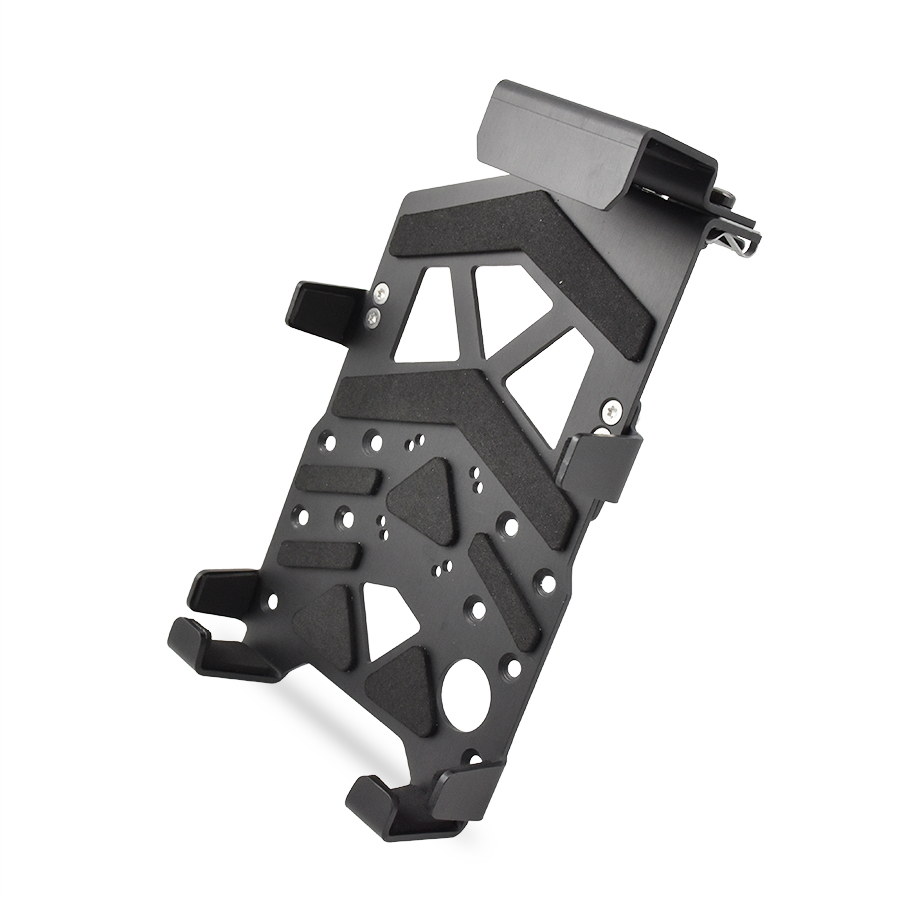

• Slide for Rugged Tablet in 3 mm anodized Peraluman.

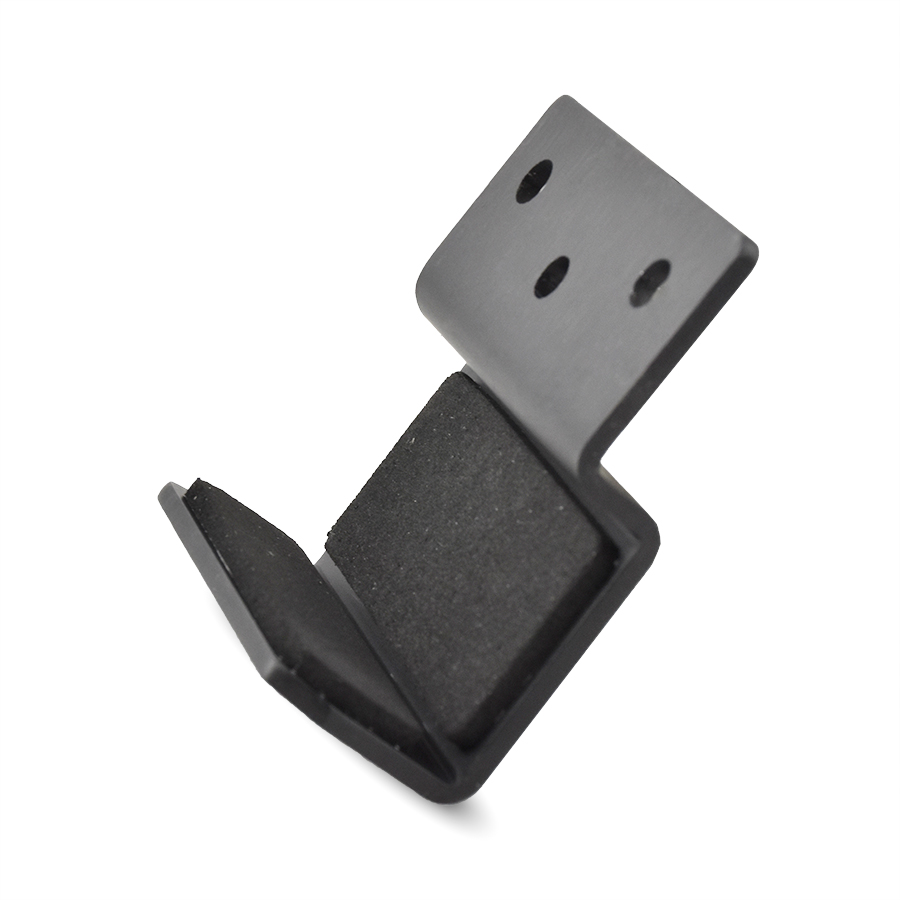

• Asymmetrical side brackets in 3 mm anodized Peraluman.
• Weight: 500 g (screws included).

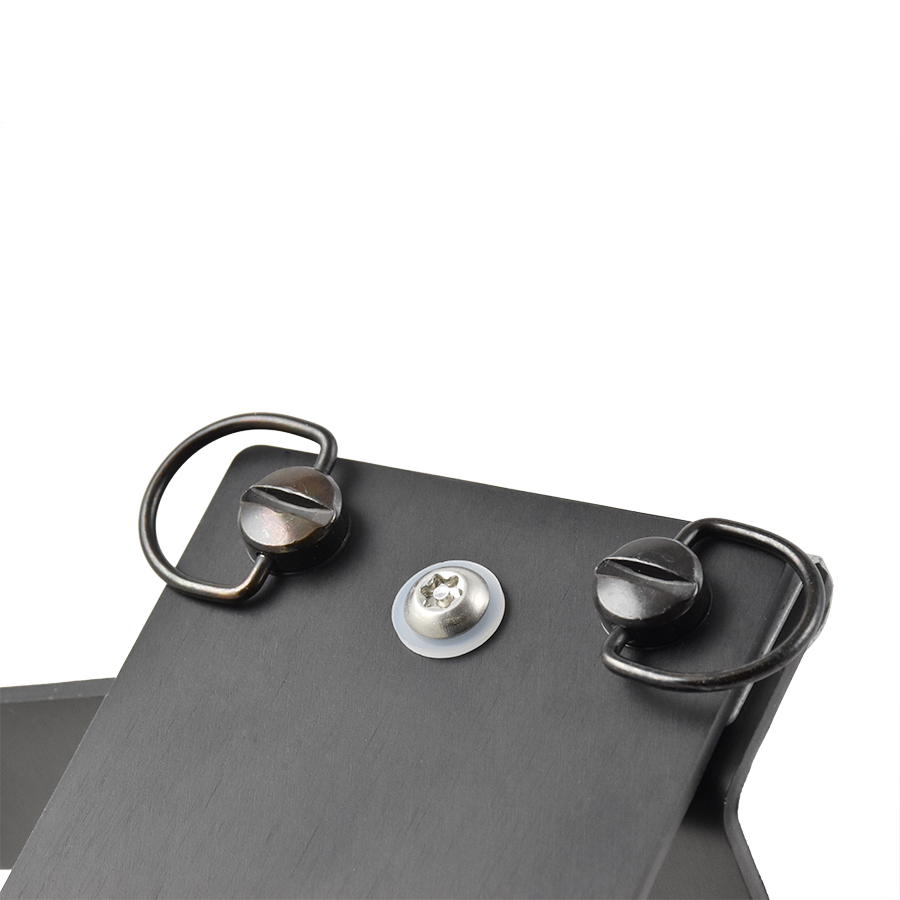

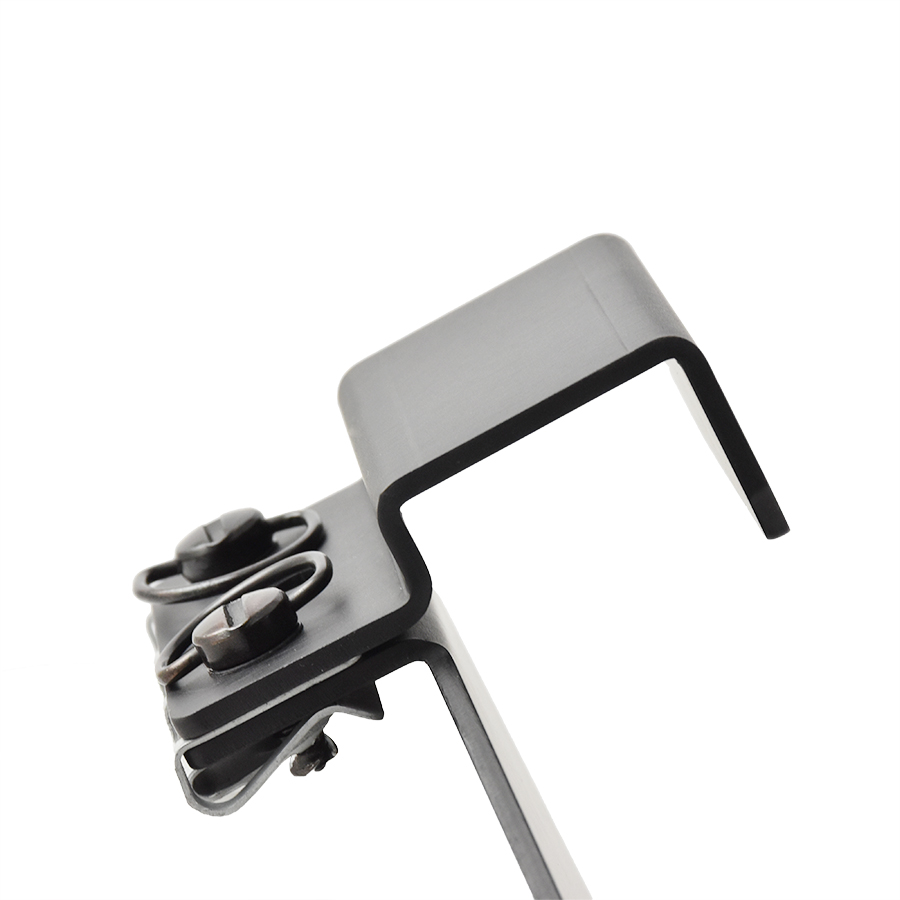

• Containment bracket and top closure with quick-release fasteners.
• Provision for anti-theft locking kit.

The package includes:

1. Slide for Rugged Tablet in 3 mm anodized Peraluman.
2. Asymmetrical side brackets in 3 mm anodized Peraluman.
3. Containment bracket and top closure with quick-release fasteners.

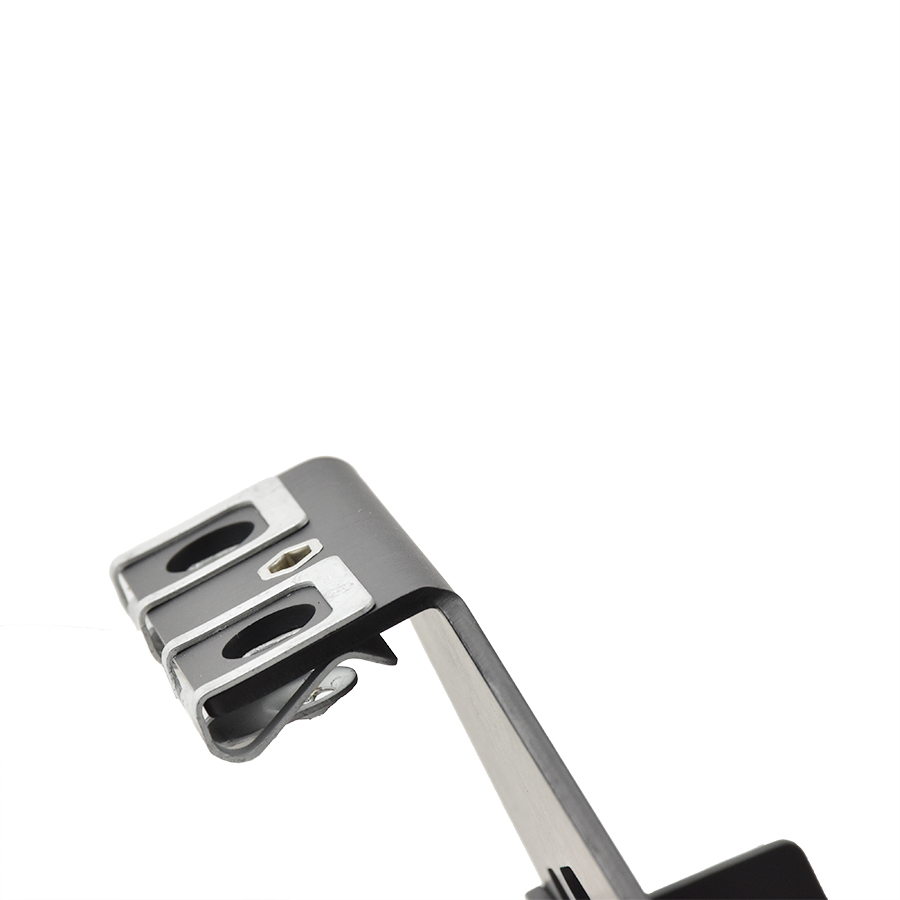

4. Ergal brackets with 90 mm length (for all handlebars ø 28/28.6).
5. Two sets of 3 mm thick anti-vibration spacers.
6. Anti-theft locking kit.
7. Installation Instructions.

Available in color: Black.
