Rally Kit E-Light 1 – GasGas EC – Twalcom®

DESCRIPTION

“PROTECTED DESIGN by Akran Intellectual Property”

Racing Design and 2,800 lm.

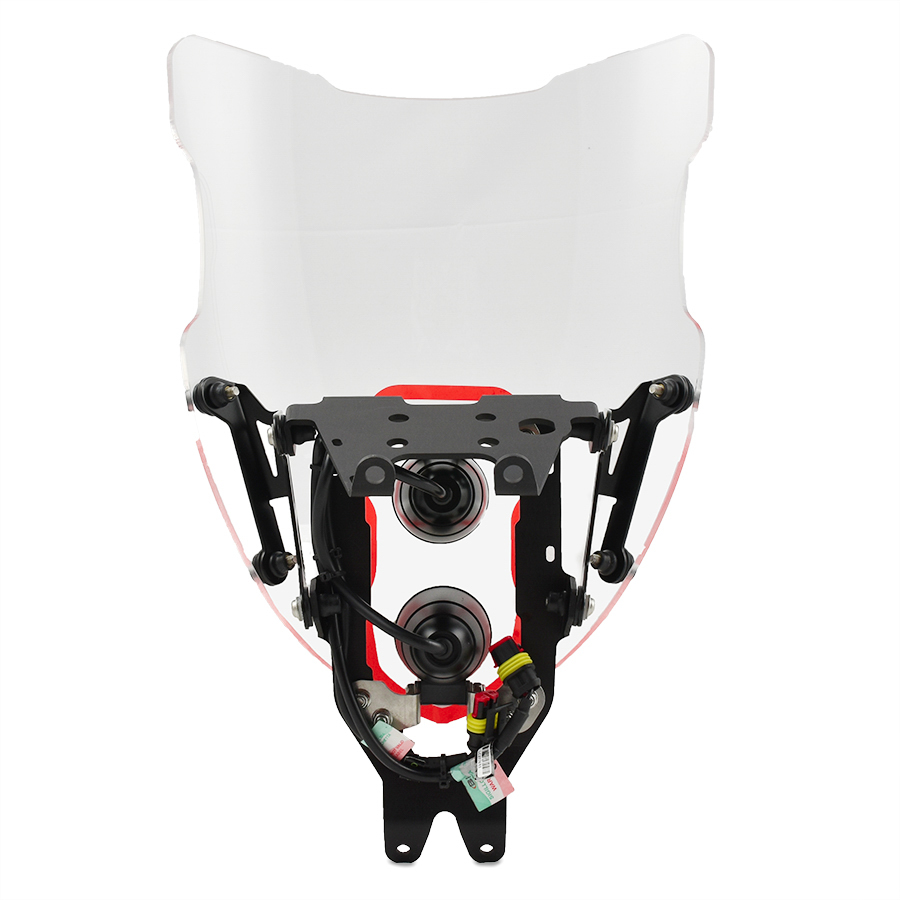

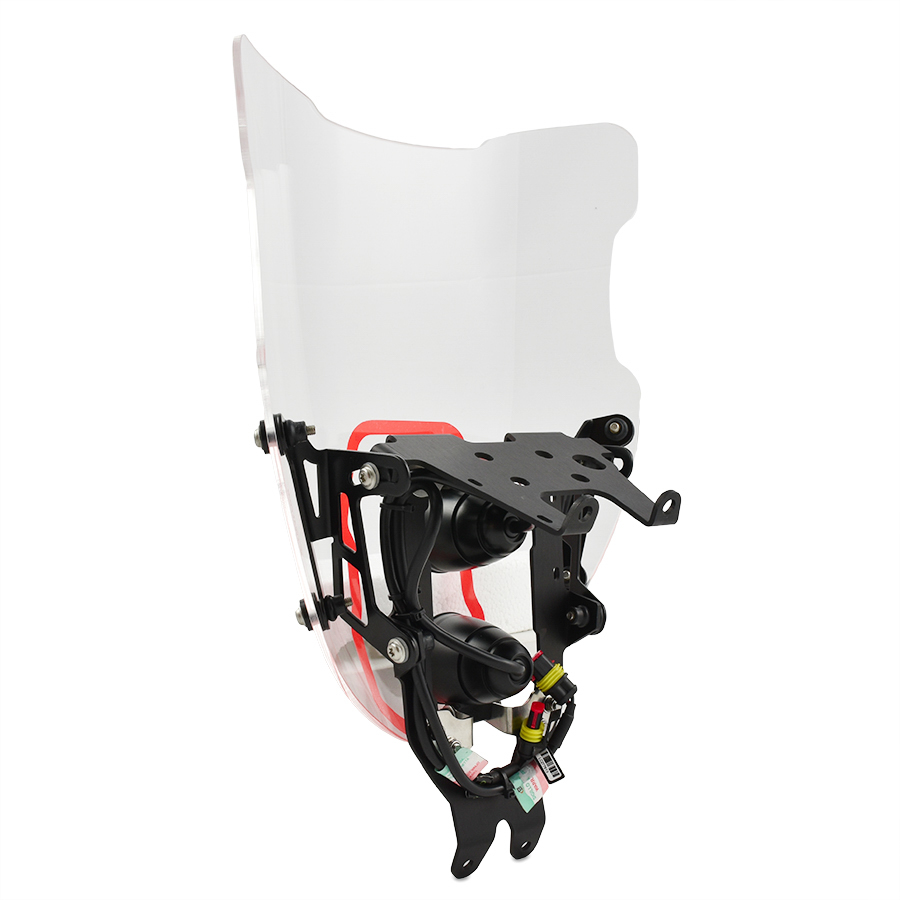

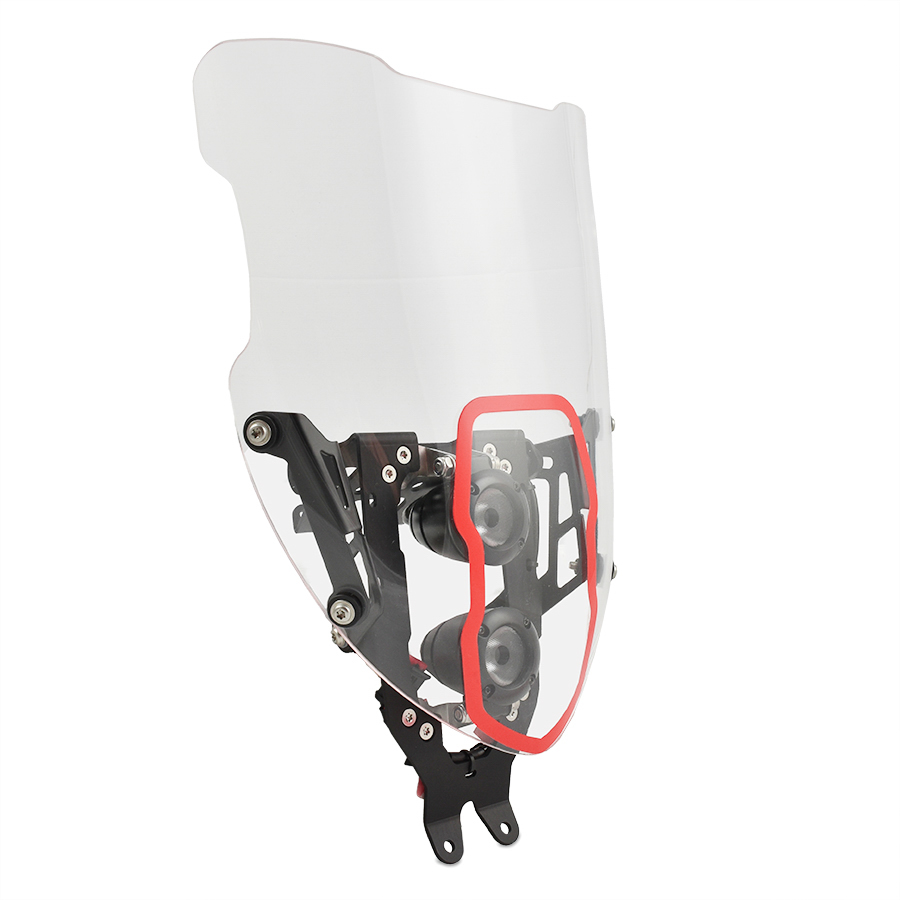

The Rally Kit E-Light 1, equipped with an adjustable windscreen and two LED headlights, is specifically designed and manufactured to provide greater aerodynamic protection, a wider field of vision, and increased safety in all low-visibility situations. Installation is simple and quick thanks to the dedicated wiring. You just need to disconnect the original connector of the standard mask and insert the new connector. The lights will be controlled directly by the standard light switch. No special tools or skilled labor are required. Everything can be installed in less than 40/45 minutes.

For our Rally Kit E-Light 1, we chose the new Single LED High Performance Super Slim headlights by Twalcom Racing, which are particularly suitable for this type of installation because they are very robust, lightweight, compact, high-performance, and low-consumption (15 W each). This energy saving allows for the installation of additional equipment (GPS, Roadbook, Rugged Tablet, or other) without overloading the battery. The support frame is also pre-configured for an optional USB port and offers ample space and protection for mounting a wide range of accessories.

All our Rally Kits can be completed according to different uses: Adventure, Raid and Rally Racing. For more information see the “Rally Kit Accessories” page.

LED Headlight Technical Specifications:

• ECE50.50R.00.0070 approval
• Die-cast aluminum structure IP 68.
• 1400 lm. – 15w. – DC10 – 30v.
• 25° beam width
• Dimensions: 50 x 63 x 57 mm.
• Weight: 200 g each.
• 24-month warranty.

Windscreen Specifications:

• Approval DOT 626 M5 32 AS7
• Height 360 mm.
• Adjustable inclination
• High thickness

Total Rally Kit Weight: 1,100 g.

Available with black anodized frame and Transparent or Light Smoke Windscreen.

The package includes:

1. Anodized Peralluman support frame
2. New high-thickness windscreen with adjustable inclination (height 360 mm.)
3. Dedicated graphic frame, Racing Red color
4. Two Single LED High Performance Super Slim headlights with ECE50.50R.00.0070 approval
5. Two mounting/adjustment brackets
6. Dedicated “Made in Twalcom” plug and play wiring for direct connection to the original connector
7. Electrical installation materials
8. Installation instructions.
