DESCRIPTION

“PROTECTED DESIGN by Akran Intellectual Property”

Racing Design and 4,750 lm.

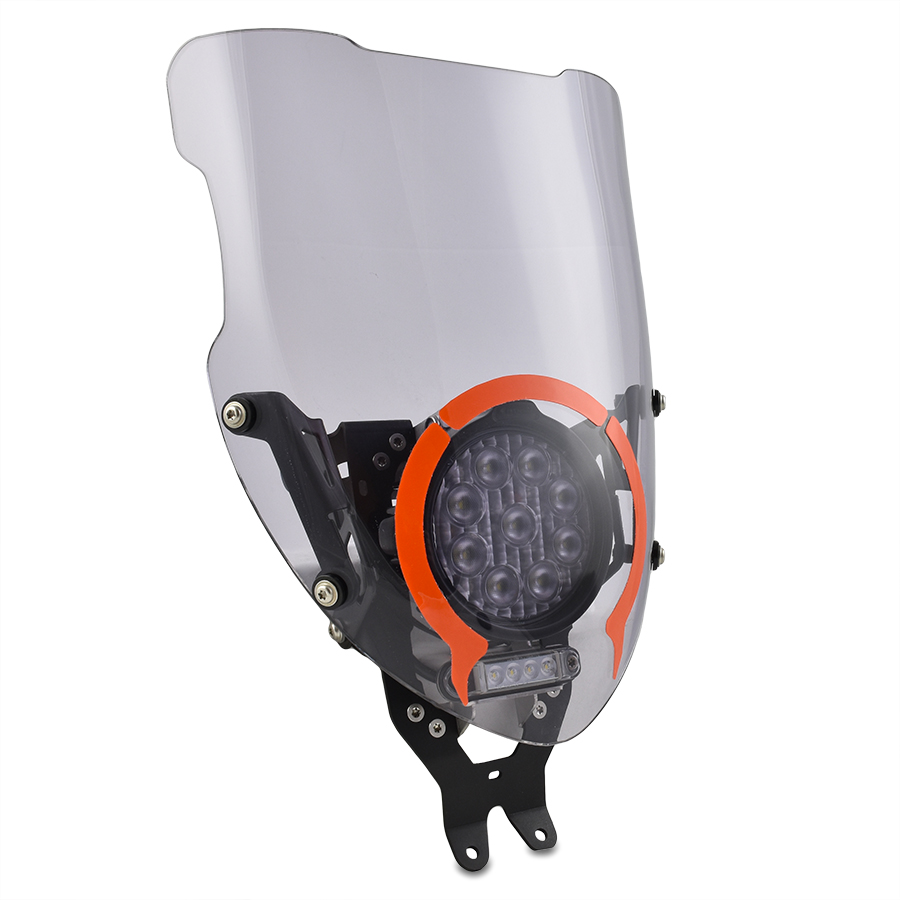

The Rally Kit E-Light Force, equipped with an adjustable windscreen and a 9 LED headlight NOT approved RACE USE ONLY, is specifically designed and manufactured to provide greater aerodynamic protection, wider field of vision, and enhanced safety in all low visibility conditions. Installation is quick and easy thanks to the dedicated wiring harness. Simply disconnect the original connector from the standard headlight mask and insert the new connector. The lighting will be controlled directly by the standard light switch. No special tools or expertise required. Everything can be installed in less than 40/45 minutes.

For our Rally Kit E-Light Force, we chose an approved, compact, and low-consumption DayLight, paired with the new Vision-X LED headlight with 9 High Performance LEDs. It’s powerful, extremely robust, vibration-resistant, and particularly suited for Racing use. The power, depth, and unique light beam offer maximum visibility in all situations. All this with a consumption of only 45W. The special wiring included allows for the activation of just the DayLight and, in the high beam position of the original light switch, the activation of the main headlight. This energy saving makes it possible to install additional equipment (GPS, Roadbook, Rugged Tablet, or others) without straining the battery. The support frame is also prepared for a possible USB socket and offers ample space and protection for mounting a wide range of accessories.

All our Rally Kits can be completed according to different uses: Adventure, Raid and Rally Racing. For more information see the “Rally Kit Accessories” page.

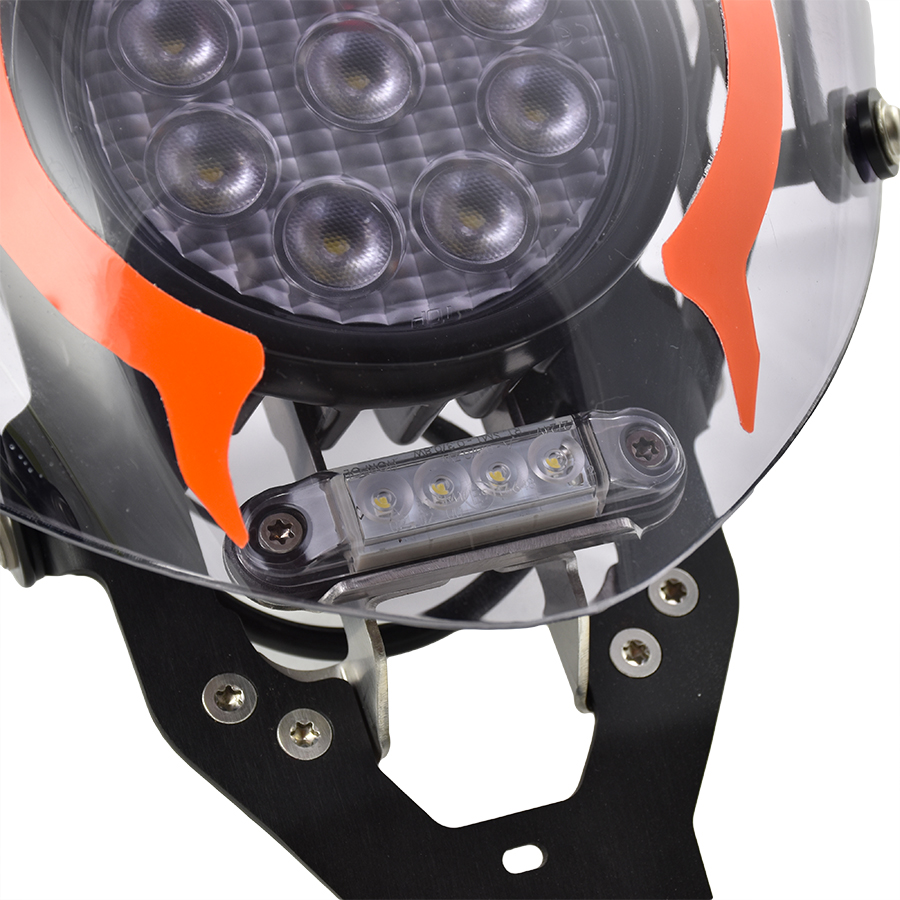

DayLight Technical Specifications:

• Approval A02 R102 SM100 E09 16648
• A-0.3/0.7 W.

LED Headlight Technical Specifications:

• NOT APPROVED – RACE USE ONLY
• Die-cast aluminum structure IP 68.
• 4750 lm. – 45w. – 9-32V DC
• Beam width 40°
• Weight: 482 g.
• 24-month warranty.

Windscreen Specifications:

• Approval DOT 626 M5 32 AS7
• Height 360 mm.
• Adjustable inclination
• High thickness

Total Rally Kit Weight: 1,580 g.

Available with black anodized frame and Transparent or Light Smoke Windscreen.

The package includes:

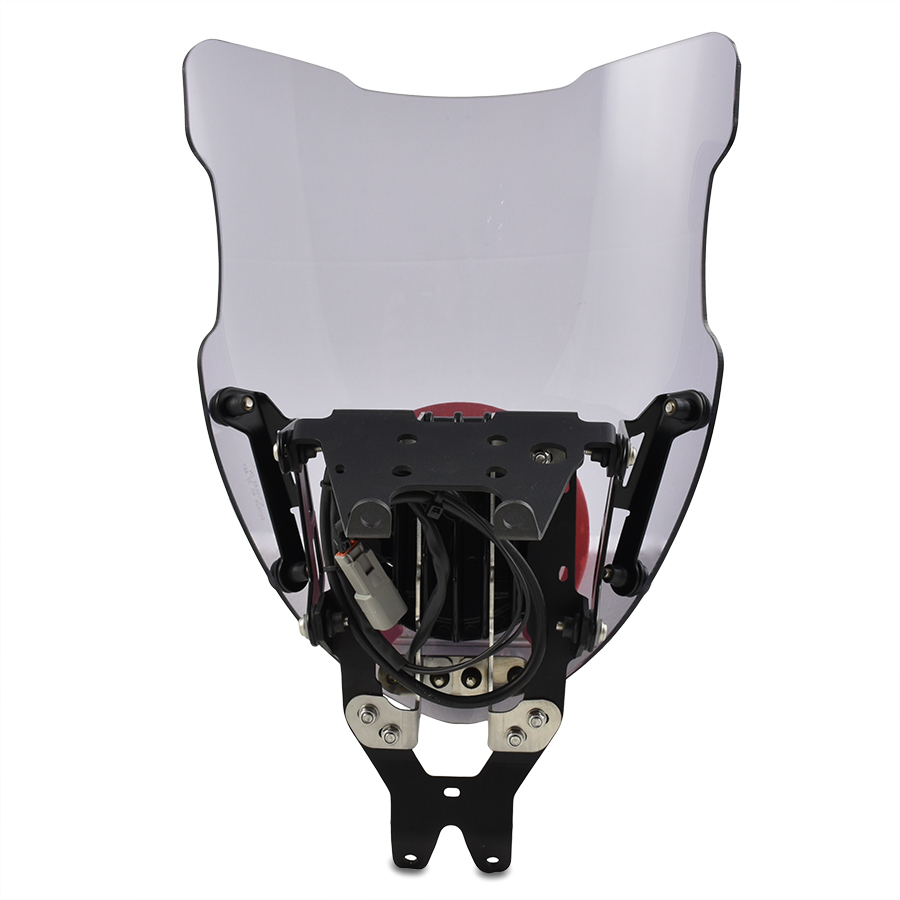

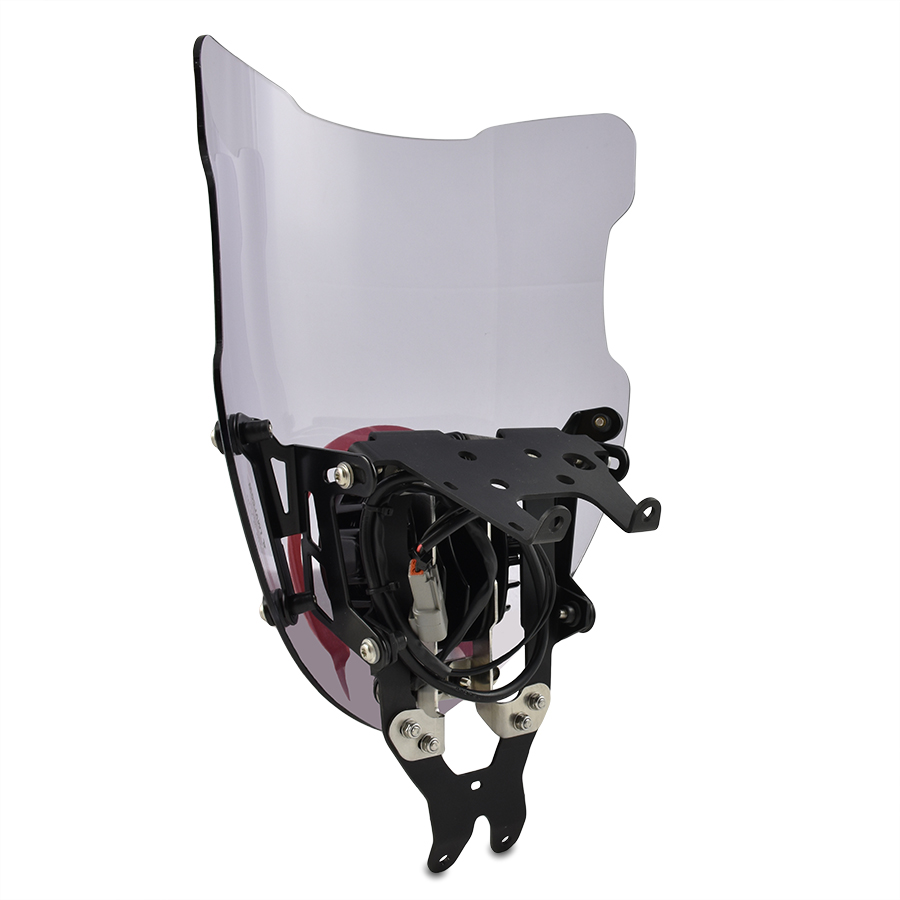

1. Anodized Peralluman support frame
2. New high-thickness windscreen with adjustable inclination (height 360 mm.)
3. Dedicated graphic frame, Orange Racing color
4. DayLight approved A02 R102 SM100 E09 16648
5. 9 LED Headlight CE Certified
6. Two mounting/adjustment brackets
7. Dedicated “Made in Twalcom” plug and play wiring for direct connection to the original connector
8. Electrical installation materials
9. Installation instructions.
