Rally Kit E-Light-Q (h. 360 mm.) KTM 690 Enduro R > 2019 – Twalcom®

Rally Kit E-Light-Q (h. 360 mm.) KTM 690 Enduro R > 2019 – Twalcom®

546,34

Clear
000

Additional information

Cupolini colors

Light Smoke, Transparent

DESCRIPTION

“PROTECTED DESIGN by Akran Intellectual Property”

4 Led headlights (2 x 10 ° + 2 x 25 °) with approval 10R-05.E9.22034 CE – Windscreen with adjustable inclination (height mm. 360) with approval DOT 626 M5 32 AS7

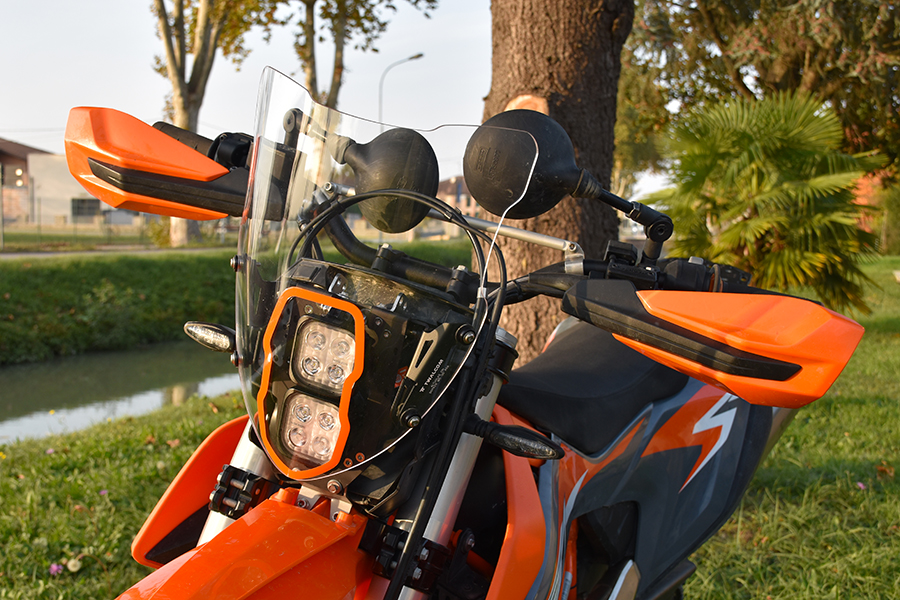

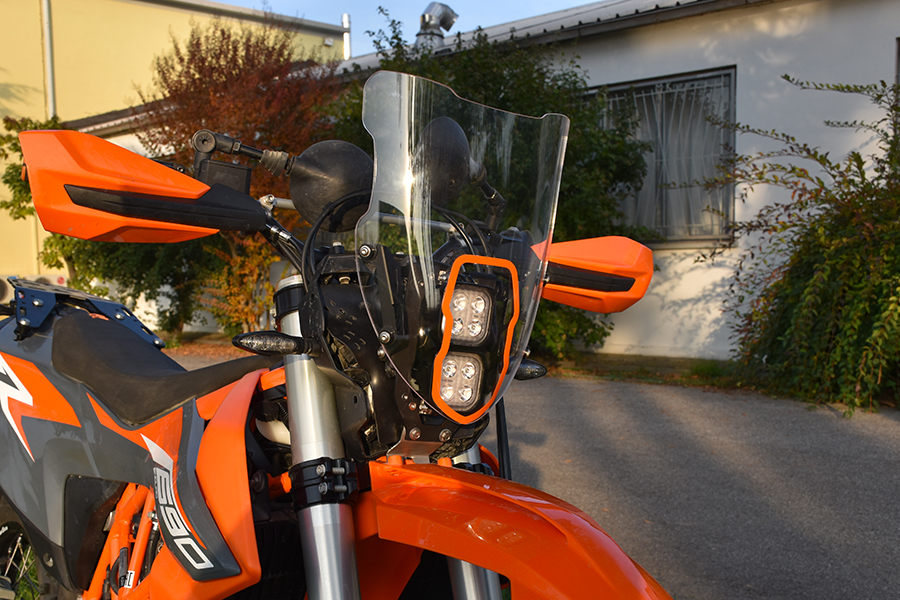

With our Rally E-Light-Q equipped with windscreen with adjustable inclination and two Led lights expressly designed and produced by us for the KTM 690 Enduro R> 2019 you will have greater aerodynamic protection, greater field of vision and greater safety in all situations of low visibility. Assembly is very simple and very fast thanks to the dedicated wiring. In fact, it is sufficient to disconnect the original connector of the stock mask and insert the new connector. The ignition will be controlled directly by the standard light switch. No specialized equipment and / or manpower, nothing else is needed. Everything can be assembled in less than 20/25 minutes.

For our E-Light-Q Rally Kit we have chosen the new 4 LED Vision-X headlights particularly suitable for this type of installation as well as quality guaranteed by the 50,000 hours that Vision-X itself certifies. The new 4-LED Vision-X headlights are in our opinion to date for high heat resistance, brightness, exceptional brilliance and double-wide field of view (2 x 10 ° and 2 x 25 ° for each headlight) , as well as the incredible strength and durability, among the best LED headlights on the market and also guaranteed by the Vision-X quality.

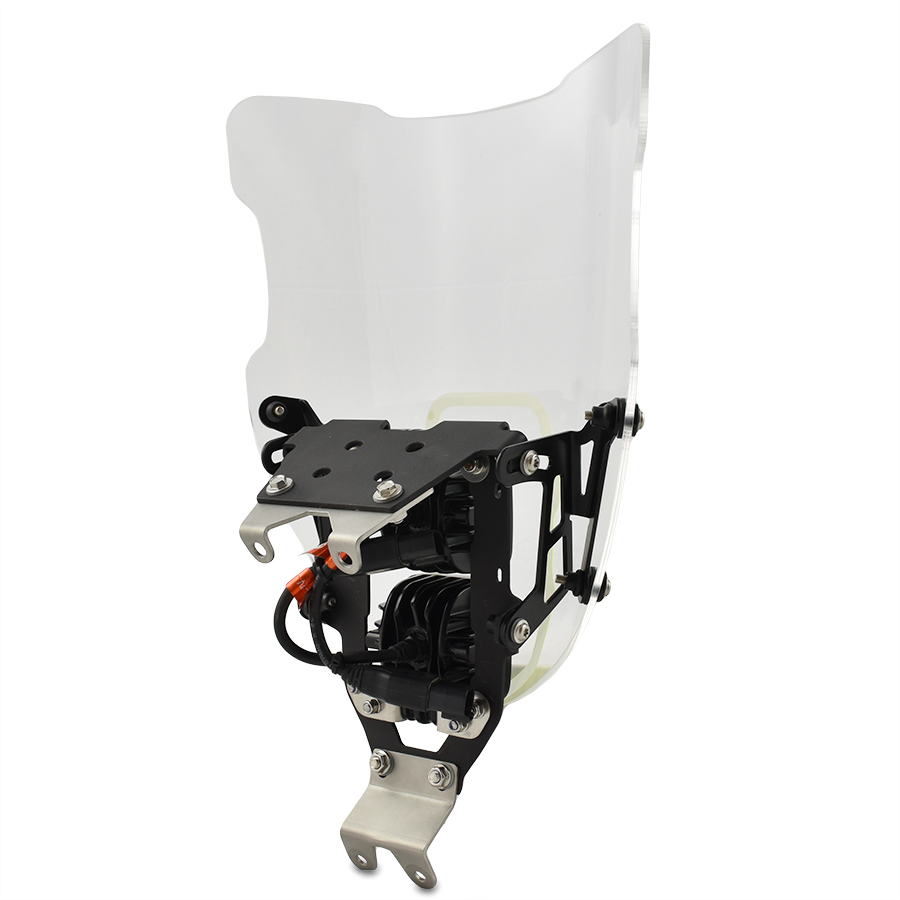

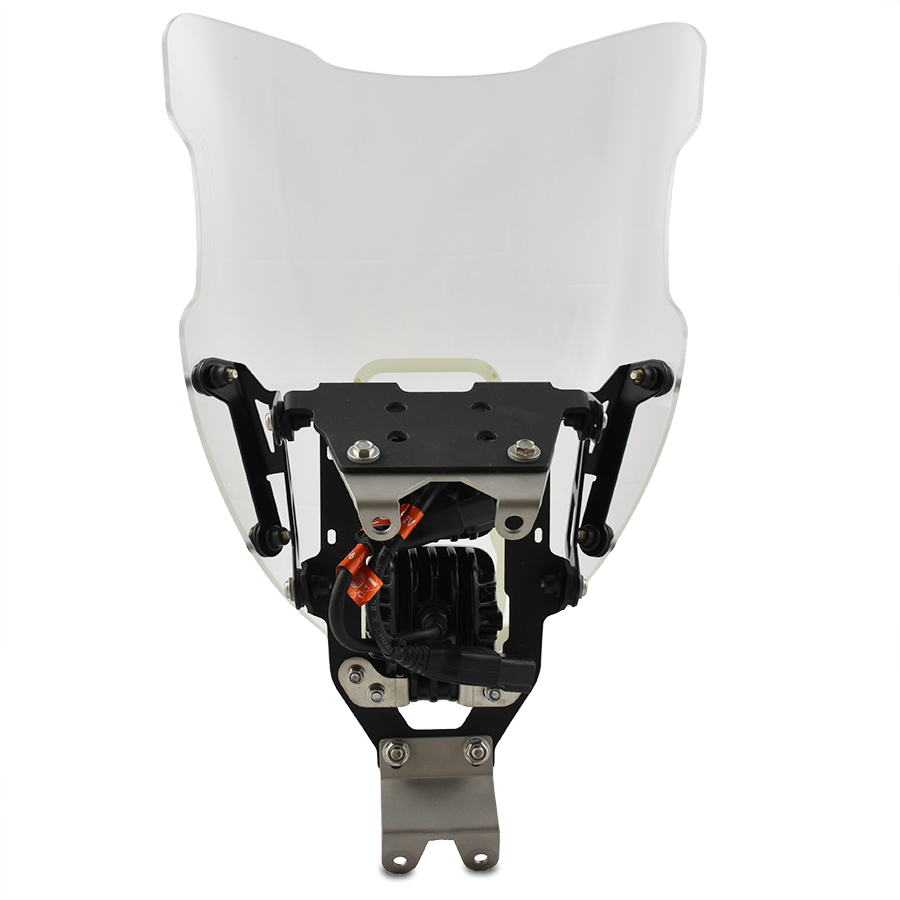

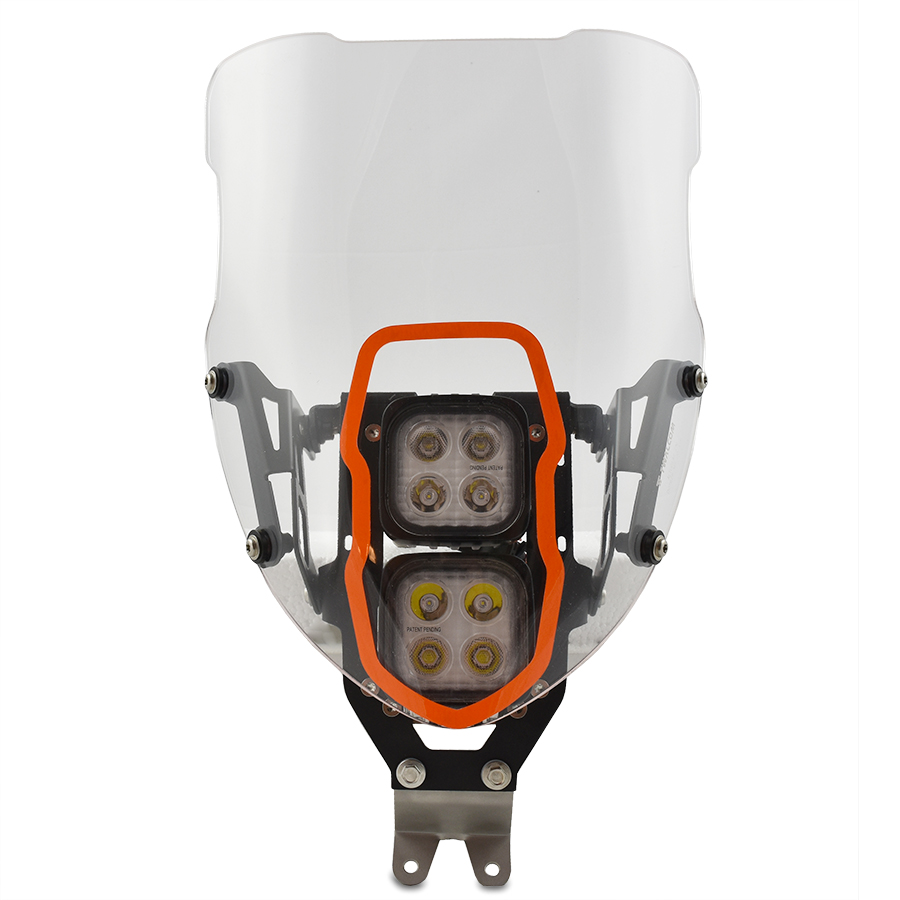

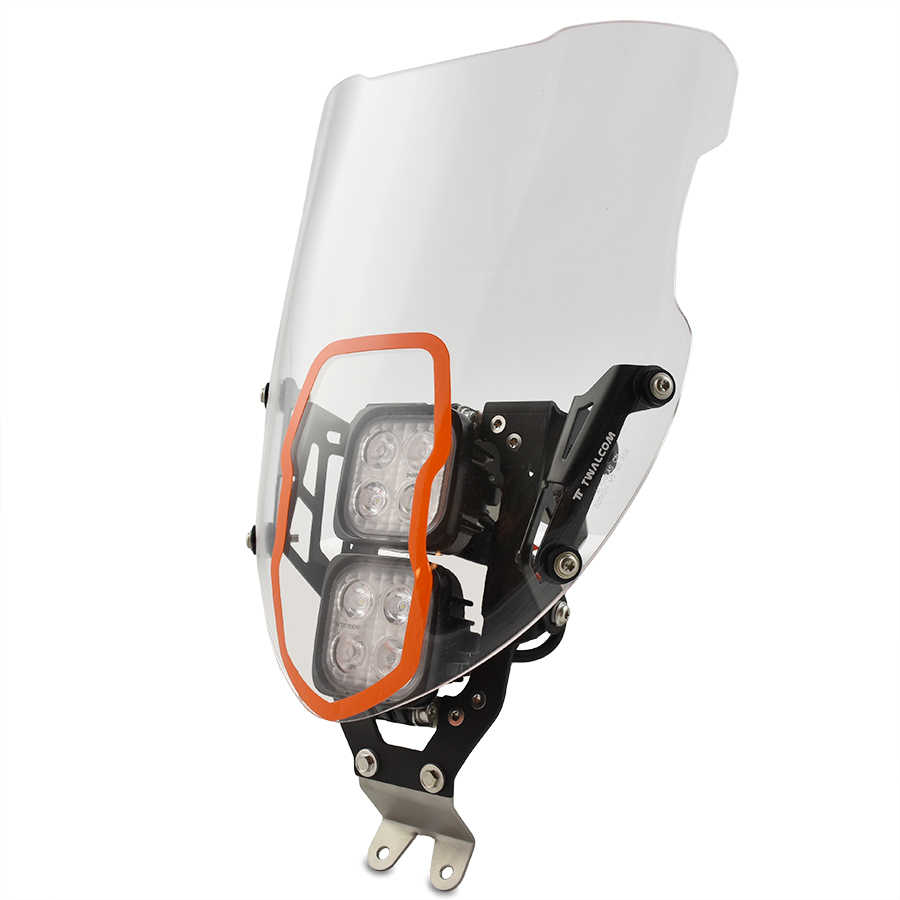

In addition to this, the energy savings generated by the assembly of LED headlights makes it possible to install any additional instrumentation (GPS, Roadbook or other) without putting the battery in crisis. The support frame is designed for mounting the bracket for GPS cod. AC.03.02649.000.001 / 2/3 (not included in the package and sold separately). The package includes: support frame in anodized Peralluman – high thickness windscreen adjustable in inclination height mm. 360 – 2 4 LED Vision-X headlights with 10R-05.E9.22034 CE approval (2.115 lm. (RAW) – 1.480 lm. With Polycarbonate lens – 4 x 5w. – DC9-32v.) Amplitude 2×10 ° + 2×25 ° for each headlight – 2 fixing / adjustment brackets, direction indicator supports (right + left), dedicated wiring “Made in Twalcom” plug and play ready for direct connection to the original KTM / Husqvarna connector.

Headlamp structure: in die-cast aluminum IP-69. Dimensions: mm. 70 x 82 x 49. Led light weight: gr. 400 each Total weight: gr. 1,570.

Matching accessories: AC.03.02649.000.001 – TT® – Support bracket for Garmin GPSMAP 276CX / Montana; AC.03.02649.000.002 – TT® – Support bracket for Garmin GPSMAP C-62/62 Series; etc. Available in colors: black frame, windscreen mm. 360 Transparent or Light Smoked.

Led headlights: 24 months warranty.

SCARICA

IL MANUALE D’USO E MANUTENZIONE
